High-Quality Bolt-on Pipe Saddles from Fabco Plastics

Products

Pipes & Fittings

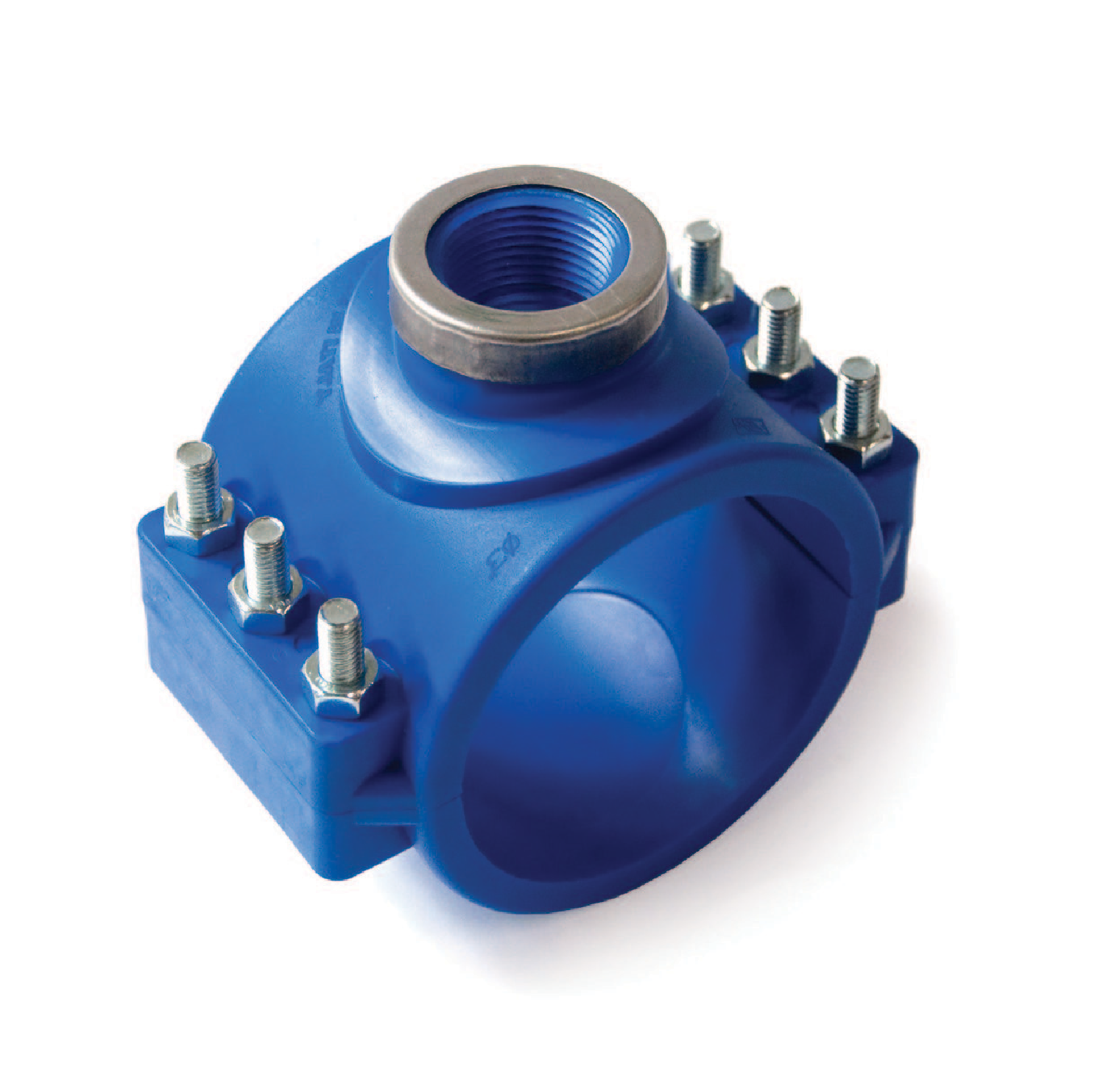

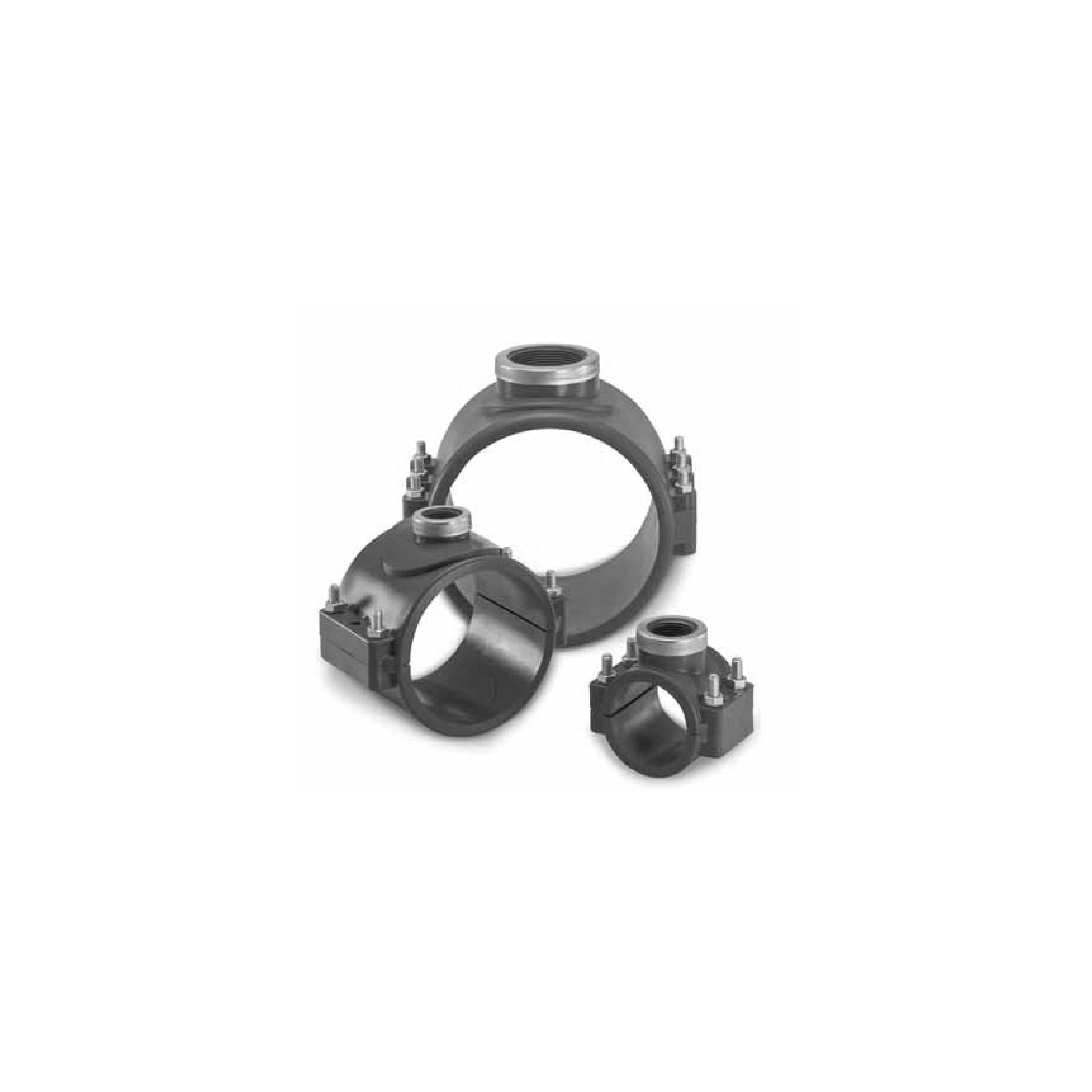

Chemline PS Series Bolt-on pipe saddles are for IPS size PVC or HDPE piping. Made of solid polypropylene, these fittings are durable and impact resistant. They are ideal for outdoor applications in irrigation and also widely used on water treatment skids. Polypropylene also has excellent chemical resistance. The female threaded branch comes standard with a 204 stainless steel reinforcing ring. Pipe saddles are normally supplied with a 304 stainless steel bolt, but are available special order with galvanized steel bolts at lower cost.

Maximum Pressure rating at 20C (68F)

235 psi (16 bar)

Maximum Temperature

100C (212F)

Standards

Conform to Standards ANSI/ASME B!.20.1., ASTM, D3035, F714 and AWWA C-901/906.

Chemline PS Series Bolt-on Pipe Saddles are versatile and durable fittings made of solid polypropylene. Here are some common applications:

Irrigation Systems: Ideal for outdoor use due to their impact resistance and durability.
Water Treatment Skids: Widely used in water treatment setups because of their excellent chemical resistance.
PVC or HDPE Piping: Suitable for IPS size PVC or HDPE piping, making them useful in various industrial and commercial piping systems.

IPS PIPE SIZE (IN)	BRANCH FNPT (IN)	PART NUMBER
1-1/2	1/2	PSBR015-005-304
1-1/2	3/4	PSBR015-007-304
1-1/2	1	PSBR015-010-304
2	1/2	PSBR020-007-304
2	1/2	PSBR020-005-304
2	3/4	PSBR020-007-304
3	1	PSBR020-010-304
3	1/2	PSBR030-007-304
3	1	PSBR030-010-304
3	1-1/4	PSBR030-012-304
3	1-1/2	PSBR030-015-304
4	1/2	PSBR040-005-304
4	3/4	PSBR040-007-304
4	1	PSBR040-010-304
4	1-1/4	PSBR040-012-304
4	1-1/2	PSBR040-015-304
4	2	PSBR040-020-304
6	1/2	PSBR060-005-304
6	3/4	PSBR060-007-304
6	1	PSBR060-010-304
6	1-1/4	PSBR060-012-304
6	1-1/2	PSBR060-015-304
6	2	PSBR060-020-304
