Elongated Butt Flange Adapters - Fabco Plastics for Reliable Connections

Products

Pipes & Fittings

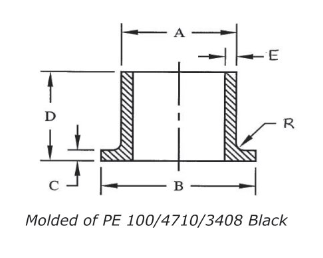

NOMINAL DIAMETER	A (IN)	B (IN)	C (IN) WALL	D (IN) OD	E (IN) WALL	WEIGHT (LBS)
SOR 11 (STANDARD DIMENSl□N RATI□) 160 PSI (WORKING PRESSURE AT 73.4°F)
3/4" IPS	1.05	1.85	0.39	4.02	0.095	0.07
1" !PS	1.315	2.36	0.39	4.02	0.119	0.11
11/4" !PS	1.66	2.8	0.39	4.02	0.151	0.16
1 1/2" !PS	1.9	3.15	0.39	4.02	0.173	0.12
2" !PS	2.375	3.94	0.55	6.1	0.216	0.48
3" !PS	3.5	5	0.67	6.1	0.318	0.93
4" !PS	4.5	6.61	0.79	6.1	0.409	1.66
6" !PS	6.625	8.5	1.02	8.07	0.603	4.07
8" !PS	8.625	10.63	1.26	10.67	0.785	8.73
10" !PS	10.75	12.99	1.38	11.5	0.978	14.11
12" !PS	12.75	15.75	1.5	10.83	1.16	19.88

NOMINAL DIAMETER	A (IN)	B (IN)	C (IN) WALL	D (IN) OD	E (IN) WALL	WEIGHT (LBS)
SDR 17 (STANDARD DIMENSl□N RATI□) ma PSI (WORKING PRESSURE AT 73.4°F)
2" !PS	2.375	3.94	0.55	6.1	0.14	0.37
3" !PS	3.5	5	0.67	6.1	0.206	0.71
4" !PS	4.5	6.61	0.79	6.1	0.264	1.27
6" !PS	6.625	8.5	1.02	8.07	0.39	3.02
8" !PS	8.625	10.63	1.26	10.67	0.508	6.02
10" !PS	10.75	12.99	1.38	11.5	0.633	10.06
12" !PS	12.75	15.75	1.5	10.83	0.75	14.17
