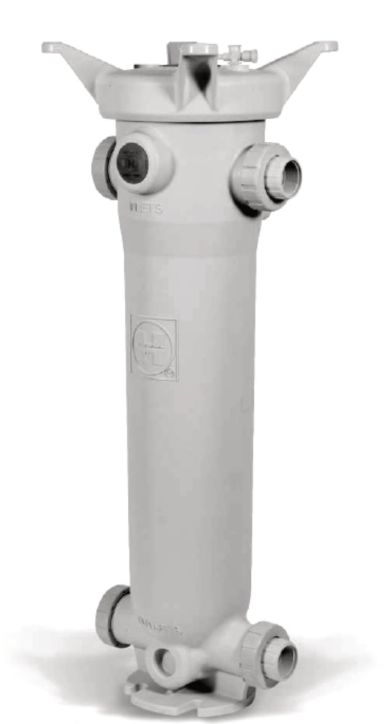

Hayward FLV Duplex Bag Filters 32" GFPP for 2"-4" Pipe Sizes

Products

Pumps & Filtration

1. Vent Valve Qncluded)
2. Cover
3. Riter Body
4. End Connector
5. Assembly Nut
6. Alternate 2″ NPT Ports
7. Integrally Molded Mounting Pad

1. Handle
2. Haywarcfall LA Series Three-Way Lateral Valve
3. Spool Assembly (Each Side)
4. Stem Extension Pipe

FILTER SIZE IN/DIN	A IN/MM	B IN/MM	C IN/MM	D IN/MM	E IN/MM	F IN/MM	G IN/MM	H* IN/MM	J IN/MM	K IN/MM	L IN/MM	M IN/MM
DIMENSIDNS
2/50	6.00/152	7.77/197	47.44/1206	4.50/1215	47.83/1215	39.00/991	41.70/1059	31.25/794	20.93/532	16. 75/425	48.00/1219	2.62/67
3/80	7.60/193	9.95/205	55.17/1401	4.50/1215	47.83/1215	39.00/991	50.99/1295	31.25/794	20.93/532	16. 75/425	48.00/1219	2.62/67
4/100	9.33/237	11.76/299	55.17/1401	4.50/1215	47.83/1215	39.00/991	50.99/1295	31.25/794	20.93/532	16. 75/425	48.00/1219	2.62/67
