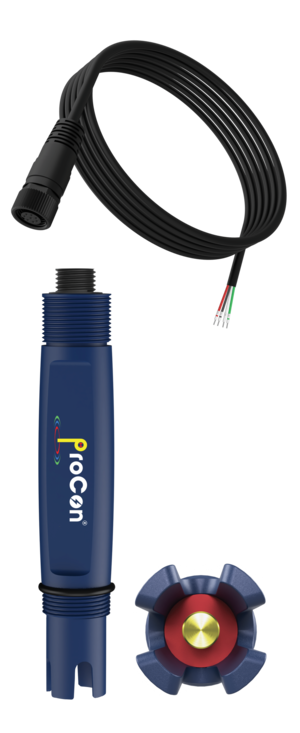

The ProCon® ORP Sensors (featuring SimplCal® ) include advanced electronic circuity that stores ORP data for automatic sensor recognition and trouble-free calibration when connected to the ProCon ® Controller. ORP sensors incorporate Nexus®, a solid reference material that eliminates poisoning or leaching of the reference electrolyte that occurs in standard sensors. Nexus ® also eliminates the need for ongoing maintenance or cleaning requirement due to fouling or film build up removal which occurs with traditional ORP sensors. They are available in multiple configurations including flying lead and blind/local display j-box for maximum versatility. The universal NPT¾” connections are designed for mounting on pipe, wall, or tank. J-box versions are equipped standard with quick grip wire connection making installation easy — no tools required. Connect with any ProCon® controller for seamlessly easy calibration. Direct sensor to controller —no preamp required. Manufactured by Icon Process Controls
| MODEL | R7G | R7C |
|---|---|---|
| APPLICABLE ENVIRONMENT | General ENVIRONMENT | Complex ENVIRONMENT |
| MEASURING RANGE | ±1000mV | |
| ZERO POTENTIAL | – | |
| TEMPERATURE RANGE | 0 – 90°C | |
| PRESSURE | 0 – 90 Psi | |
| TEMPERATURE SENSOR | None (customizable) | |
| SHELL MATERIAL | PP | |
| MEMBRANE RESISTANCE | – | |
| REFERENCE SYSTEM | NEXUS® | |
| LIQUID JUNCTION | Porous Ceramics | NEXUS® |
| ELECTROLYTE SOLUTION | 3.3M KCl Gel | |
| DOUBLE SALT BRIDGE SYSTEM | Yes | |
| CONNECTION THREAD | NPT ¾” | |
| CABLE LENGTH | 10m | |
| CABLE CONNECTION | J-Box | Flying Lead | |
| OUTPUT | 4-20mA | 4-20mA + RS485 | |
| PH ELECTRODE | Platinum | Gold |
• Ag / AgCl / KCl Nexus ® Reference System
• Nexus® (Replaces Liquid Junction)
• Factory Calibrated and Programmed
• SimplCal ® Calibration
• Easy Installation
• Integral Mount Systems
• Temperature Compensation
• J-box or Flying Lead
• 4 – 20mA + RS485 Output
• Connect with any ProCon® Controller
• Quick Grip Wire Connection
• Compact Design
• Water Quality
• Water Treatment
• Neutralization Systems
• Effluent Monitoring
• Sanitization Systems
• Pool & Spa Control
• Aquatic Animal Life Support Systems
• Process Control
• Cooling Towers
