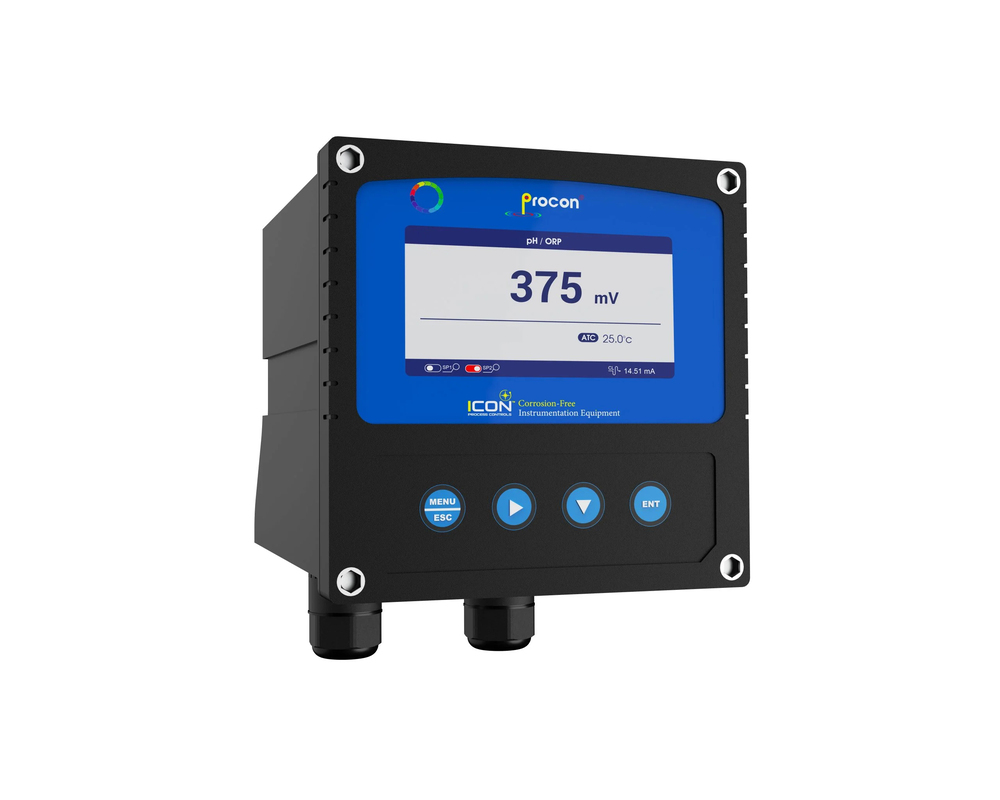

The ProCon® D series is an extremely robust corrosion resistant pH/ORP controller. The modular design is both easy to install and operate providing first measurement values in under one minute. It is packed with all the extra features included. No need to pay extra for relay, 4-20mA or RS485 outputs. The SimplCal® feature makes calibrating your sensor easier and quicker than ever before. The cost-saving quick and simple setup is done through our user-friendly step-by step on-screen menu. Active display of red alarm LED provides notification of out of bounds sensor readings and indication for sensor cleaning/recalibration or replacement.

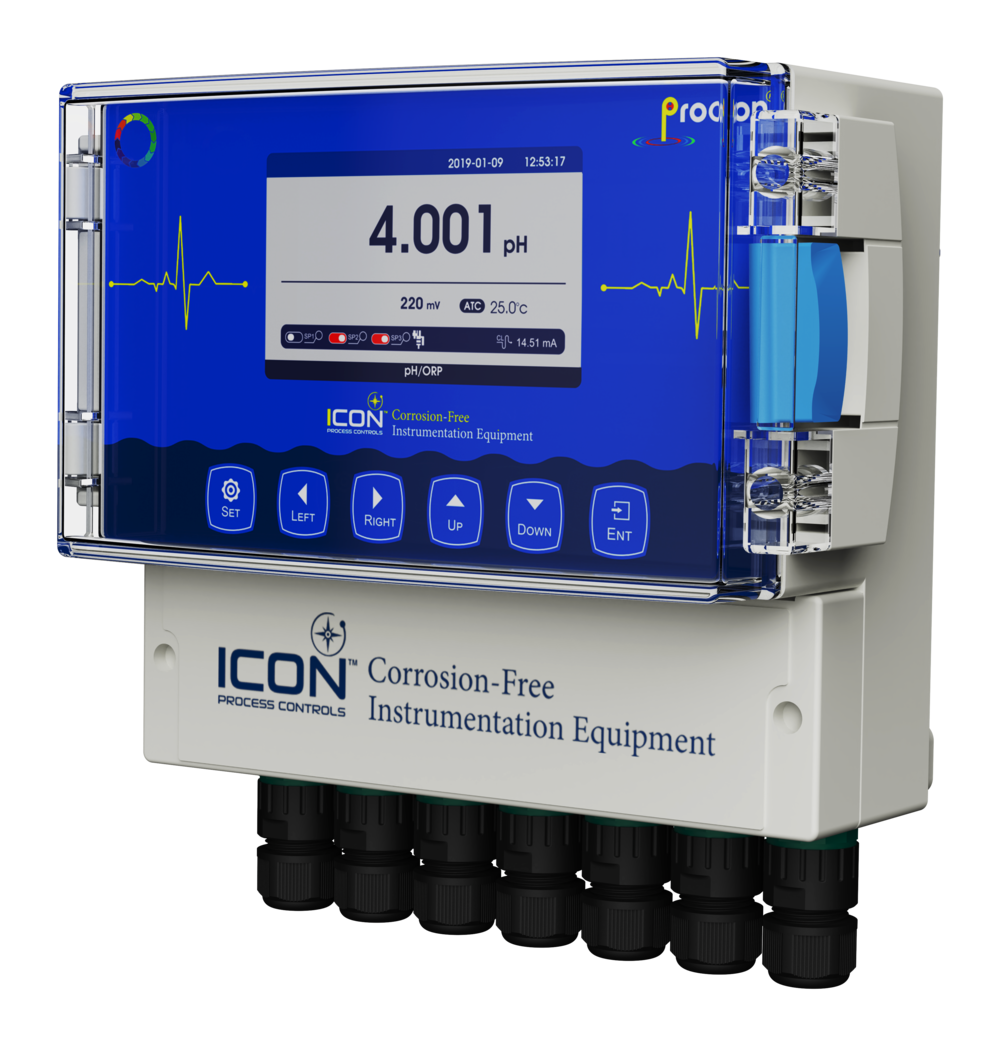

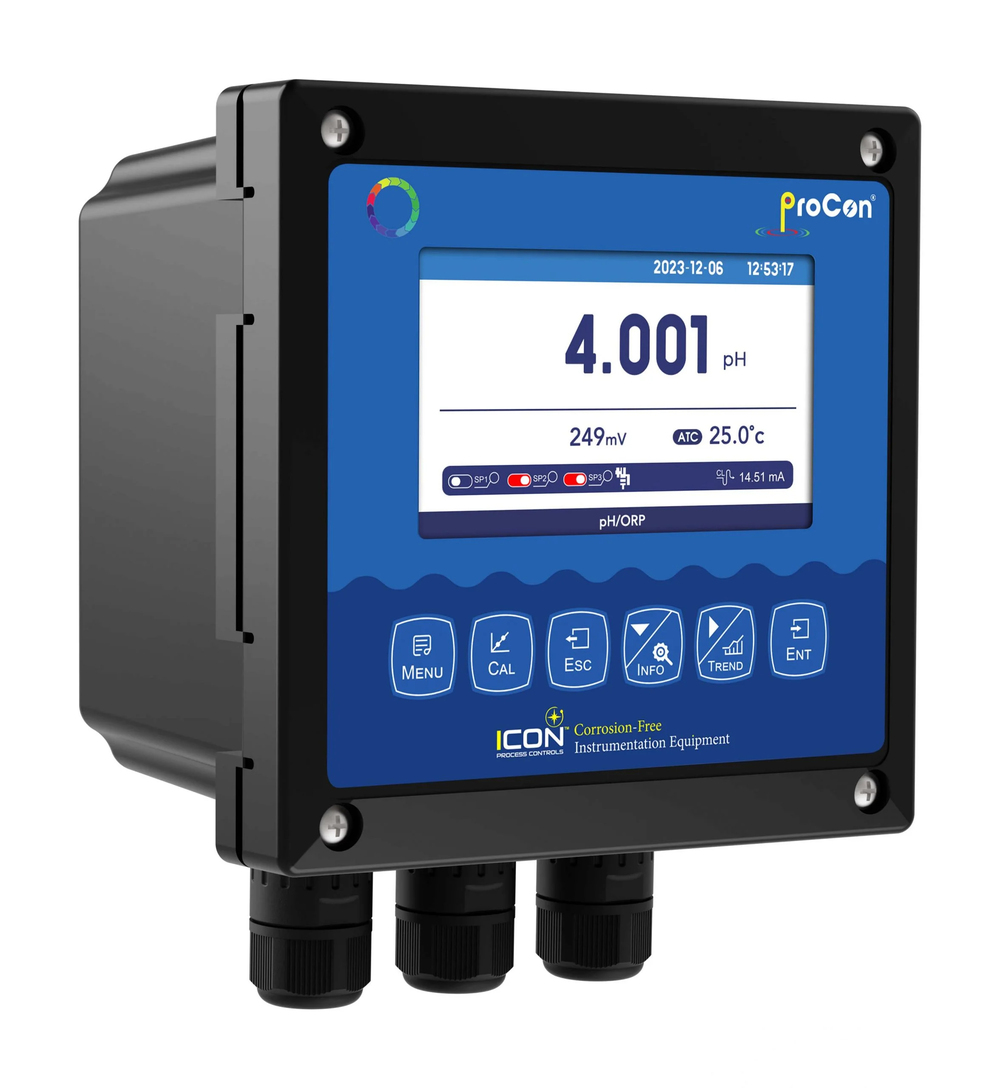

MODEL	D300	D500	D700
RANGE	pH: -2-16, ORP: ±2000mV pH: 0.001, ORP lmV
RESOLUTION	pH: 0.001, ORP lmV
ERROR OF INDICATION	pH: ±0.01, ORP: ±lmV
STABILITY	pH: :, 0.0lpH/24h, ORP: :, lmV/24h
TEMPERATURE	0 – 150.0°C (Electrode Specific )
TEMPERATURE RESOLITION	0.1 °C
TEMPERATURE	±0.3°C
TEMPERATURE COMPSENSATION RANGE	0 – 150°C
TEMPERATURE COMPSENSATION	Automatic or Manual
OUTPUT CURRENT	Two (2) x 4 – 20mA Outputs
COMMUNICATION	RS485 Modbus
DATA RECORDING	–	Data Recording/Trend Chart Display
RELAY CONTROL CONTACT	Two (2) Relays: 3A Outputs	Three (3) Relays: 5A Outputs
OPTIONAL POWER SUPPLY	85 – 265VAC or 9 – 36VDC
WORK ENVIRONMENT	Avoid magnetic field interference
ENVIRONMENT TEMPERATURE	14 – 140° F I -10 – 6o0c
RELATIVE HUMIDITY	90%
PROTECTION GRADE	IP65		NEMA 4X, IP66
MOUNTING HOLE SIZE	92.5 x 92.5mm	138 x 138mm	235 x 185 x 120mm
INSTALLATION	Panel I Wall I Pipe Mount		Wall Mount
