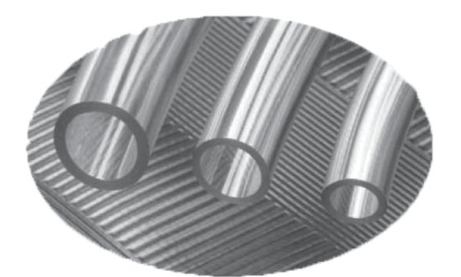

Fabco clear vinyl tubing is constructed of a Clear non-toxic food and crystal clear PVC compound which makes it ideal for beverage grade PVC tubing. It is formulated with ingredients in compliance with applicable FDA(03) requirements, meets USDA(17), 3A(0l), NSF(13), UL(16), RoHS(lS) and USP(18) Class VI criteria. The service temperature Range: is between +25°F (-4°C) and +150°F (+65°C). Hose clamps and fittings are also available. See index for types and locations.
• High gloss crystal clear appearance with glass smooth interior to reduce sediment buildup.
• Non-toxic blue tint to enhance clarity.
• NSF-51 and NSF-61 certified material.
• Self-extinguishing.
• Compound hardness 73 ±3 Shore “A”.
• Tubing for laboratories.
• Water distillation lines.
• Deionized water systems.
• Air conditioning and refrigeration drainage.
• Air lines and bottling plants.
• Beverage dispensing units.
• Ice making machines.
• High efficiency furnace drainage.
• Transfer of weak chemicals & acids.
• Working Pressure decreases as temperature increases.
• Pressure ratings can only be obtained with proper coupling procedures.
• Use of compression fittings with non-reinforced PVC tubing is not recommended. Hose claims involving use of these fittings will be disallowed.
| PART NUMBER | NOMINAL I.D. | NOMINAL D.D. | WALL THICKNESS | WP/PSI 68°F (20°C) | STANDARD LENGTH (FT) | APPROX. WT PER ROLL (LBS.) |
|---|---|---|---|---|---|---|
| CVT037 | 1/8" | 1/4" | 1/16" | 65 | 100 | 2.0 |
| K0100304 | 3/16" | 1/4" | 1/32" | 50 | 100 | 1.2 |
| CVT051 | 3/16" | 5/16" | 1/16" | 55 | 100 | 2.7 |
| K0100306 | 3/16" | 3/8" | 3/32" | 60 | 100 | 4.5 |
| CVT071 | 1/4" | 3/8" | 1/16" | 55 | 100 | 3.4 |
| CVT073 | 1/4" | 7/16" | 3/32" | 58 | 100 | 5.5 |
| CVT074 | 1/4" | 1/2" | 1/8" | 60 | 100 | 8.0 |
| CVT092 | 5/16" | 7/16" | 1/16" | 50 | 100 | 4.0 |
| K0100508 | 5/16" | 1/2" | 3/32" | 55 | 100 | 6.5 |
| K0100509 | 5/16" | 9/16" | 1/8" | 60 | 100 | 9.4 |
| CVT107 | 3/8" | 1/2" | 1/16" | 45 | 100 | 4.7 |
| CVT108 | 3/8" | 9/16" | 3/32" | 50 | 100 | 7.5 |
| K0100610 | 3/8" | 5/8" | 1/8" | 55 | 100 | 10.7 |
| K0100709 | 7/16" | 9/16" | 1/16" | 35 | 100 | 6.0 |
| CVT135 | 1/2" | 5/8" | 1/16" | 30 | 100 | 6.0 |
| CVT137 | 1/2" | 11/16" | 3/32" | 40 | 100 | 9.5 |
| CVT138 | 1/2" | 3/4" | 1/8" | 45 | 100 | 13.4 |
| K0101012 | 5/8" | 3/4" | 1/16" | 26 | 100 | 8.2 |
| CVT164 | 5/8" | 13/16" | 3/32" | 35 | 100 | 11.6 |
| CVT165 | 5/8" | 7/8" | 1/8" | 40 | 100 | 16.1 |
| CVT180 | 3/4" | 1" | 1/8" | 35 | 100 | 18.8 |
| K0101218 | 3/4" | 1 1/8" | 3/16" | 40 | 100 | 30.0 |
| CVT185 | 3/4" | 1-1/4" | 1/4" | 45 | 100 | 42.9 |
| K0101418 | 7/8" | 1 1/8" | 1/8" | 30 | 100 | 21.4 |
| K0101420 | 7/8" | 1-1/4" | 3/16" | 35 | 100 | 34.1 |
| CVT210 | 1" | 1-1/4" | 1/8" | 25 | 100 | 24.1 |
| CVT213 | 1" | 1-3/8" | 3/16" | 30 | 100 | 38.2 |
| K0101624 | 1" | 1 1/2" | 1/4" | 35 | 100 | 53.6 |
| K0102024 | 1-1/4" | 1 1/2" | 1/8" | 20 | 50 | 14.8 |
| CVT241 | 1-1/4" | 1-5/8" | 3/16" | 30 | 50 | 23.1 |
| K0102028 | 1-1/4" | 1 3/4" | 1/4" | 40 | 50 | 32.2 |
| K0102430 | 1 1/2" | 1 7/8" | 3/16" | 30 | 50 | 27.1 |
| K0102432 | 1 1/2" | 2" | 1/4" | 35 | 50 | 37.5 |
| K0103240 | 2" | 2 1/2" | 1/4" | 35 | 50 | 48.2 |
