PE 4710 Resin Specifications

Products

Pipes & Fittings

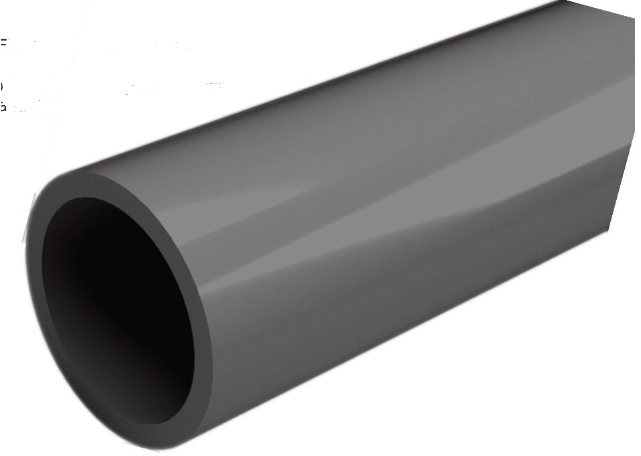

HDPE pressure pipe is manufactured with premium, highly engineered PE4710 resin that provides maximum performance benefits to service today’s municipal and industrial water needs. The PE4710 material conforms to ASTM D3350 with the cell classification of 445574C/E and is listed with the Plastic Pipe Institute’s (PPI) TR4. It is formulated with carbon black and/or ultraviolet stabilizer for maximum protection against UV rays for added assurance.

• Pipe dimensions are in accordance with ASTM F714 and AWWA C906.
• Pressure ratings are for water at 73.4 deg F.
• Some of the pipe sizes and/or DRs above are only available upon request.
• Other diameters and DRs not listed may be available upon special request.
• All dimensions are in inches unless otherwise specified.
• Weights are calculated by the methodology established in PPI’s TR7.

NOMINAL PIPE SIZE	AVERAGE OUTSIDE DIAMETER	MIN. WALL THICKNESS	AVERAGE INSIDE DIAMETER	AVERAGE WEIGHT (LBS/FT)
DR 7 (333 PSI)
1/2	0.84	0.12	0.59	0.12
3/4	1.05	0.15	0.73	0.19
1	1.315	0.188	0.92	0.29
2	2.375	0.339	1.66	0.95
3	3.5	0.5	2.44	2.06
4	4.5	0.643	3.14	3.4
5 3/8	5.375	0.768	3.75	4.85
5	5.563	0.795	3.88	5.2
6	6.625	0.946	4.62	7.36
7	7.125	0.976	5.06	8.23
8	8.625	1.232	6.01	12.48
10	10.75	1.536	7.49	19.4
12	12.75	1.821	8.89	27.28
14	14	2	9.76	32.9
16	16	2.286	11.15	42.97
18	18	2.571	12.55	54.37
20	20	2.857	13.94	67.13
24	24	3.429	16.73	96.68

NOMINAL PIPE SIZE	AVERAGE OUTSIDE DIAMETER	MIN. WALL THICKNESS	AVERAGE INSIDE DIAMETER	AVERAGE WEIGHT (LBS/FT)
DR 7.3 (318 PSI)
1/2	0.84	0.115	0.6	0.11
3/4	1.05	0.144	0.75	0.18
1	1.315	0.18	0.93	0.28
2	2.375	0.325	1.69	0.91
3	3.5	0.479	2.48	1.98
4	4.5	0.616	3.19	3.28
5 3/8	5.375	0.736	3.81	4.68
5	5.563	0.762	3.95	5.02
6	6.625	0.908	4.7	7.12
7	7.125	0.976	5.06	8.23
8	8.625	1.182	6.12	12.06
10	10.75	1.473	7.63	18.74
12	12.75	1.747	9.05	26.36
14	14	1.918	9.93	31. 78
16	16	2.192	11.35	41.51
18	18	2.466	12.77	52.53
20	20	2.74	14.19	64.85
24	24	3.288	17.03	93.39

NOMINAL PIPE SIZE	AVERAGE OUTSIDE DIAMETER	MIN. WALL THICKNESS	AVERAGE INSIDE DIAMETER	AVERAGE WEIGHT (LBS/FT)
DRS (25D PSI)
1/2	0.84	0.093	0.64	0.1
3/4	1.05	0.117	0.8	0.15
1	1.315	0.146	1.01	0.23
2	2.375	0.264	1.82	0.77
3	3.5	0.389	2.68	1.66
4	4.5	0.5	3.44	2.75
5 3/8	5.375	0.597	4.11	3.92
5	5.563	0.618	4.25	4.2
6	6.625	0.736	5.06	5.96
7	7.125	0.792	5.45	6.89
8	8.625	0.958	6.59	10.09
10	10.75	1.194	8.22	15.68
12	12.75	1.417	9.75	22.07
14	14	1.556	10.7	26.61
16	16	1.778	12.23	34.75
18	18	2	13.76	43.97
20	20	2.222	15.29	54.28
24	24	2.667	18.35	78.18
26	26	2.889	19.88	91.75
28	28	3.111	21.4	106.4
30	30	3.333	22.93	122.13

NOMINAL PIPE SIZE	AVERAGE OUTSIDE DIAMETER	MIN. WALL THICKNESS	AVERAGE INSIDE DIAMETER	AVERAGE WEIGHT (LBS/FT)
DRII (2DD PSI)
1/2	0.84	0.076	0.68	0.08
3/4	1.05	0.095	0.85	0.12
1	1.315	0.12	1.06	0.2
2	2.375	0.216	1.92	0.64
3	3.5	0.318	2.83	1.39
4	4.5	0.409	3.63	2.3
5 3/8	5.375	0.489	4.34	3.29
5	5.563	0.506	4.49	3.52
6	6.625	0.602	5.35	4.99
7	7.125	0.648	5.75	5.78
8	8.625	0.784	6.96	8.46
10	10.75	0.977	8.68	13.14
12	12.75	1.159	10.29	18.49
14	14	1.273	11.3	22.3
16	16	1.455	12.92	29.12
18	18	1.636	14.53	36.84
20	20	1.818	16.15	45.49
24	24	2.182	19.37	65.52
26	26	2.364	20.99	76.89
28	28	2.545	22.6	89.15
30	30	2.727	24.22	102.35
32	32	2.909	25.83	116.46
34	34	3.091	27.45	131.48
36	36	3.273	29.06	147.41

NOMINAL PIPE SIZE	AVERAGE OUTSIDE DIAMETER	MIN. WALL THICKNESS	AVERAGE INSIDE DIAMETER	AVERAGE WEIGHT (LBS/FT)
DR13.5
1/2	0.84	0.062	0.71	0.07
3/4	1.05	0.078	0.88	0.1
1	1.315	0.097	1.11	0.16
2	2.375	0.176	2	0.53
3	3.5	0.259	2.95	1.16
4	4.5	0.333	3.79	1.91
5 3/8	5.375	0.398	4.53	2.73
5	5.563	0.412	4.69	2.92
6	6.625	0.491	5.58	4.15
7	7.125	0.528	6.01	4.8
8	8.625	0.639	7.27	7.03
10	10.75	0.796	9.06	10.92
12	12.75	0.944	10.75	15.36
14	14	1.037	11.8	18.52
16	16	1.185	13.49	24.19
18	18	1.333	15.17	30.61
20	20	1.481	16.86	37.79
24	24	1.778	20.23	54.44
26	26	1.926	21.92	63.89
28	28	2.074	23.6	74.09
30	30	2.222	25.29	85.04
32	32	2.37	26.98	96.76
34	34	2.519	28.66	109.26
36	36	2.667	30.35	122.49

NOMINAL PIPE SIZE	AVERAGE OUTSIDE DIAMETER	MIN. WALL THICKNESS	AVERAGE INSIDE DIAMETER	AVERAGE WEIGHT (LBS/FT)
DR17 (125 PSI)
1/2	0.84	0.062	0.71	0.07
3/4	1.05	0.062	0.92	0.08
1	1.315	0.077	1.15	0.13
2	2.375	0.14	2.08	0.43
3	3.5	0.206	3.06	0.94
4	4.5	0.265	3.94	1.55
5 3/8	5.375	0.316	4.71	2.21
5	5.563	0.327	4.87	2.36
6	6.625	0.39	5.8	3.35
7	7.125	0.419	6.24	3.88
8	8.625	0.507	7.55	5.68
10	10.75	0.632	9.41	8.82
12	12.75	0.75	11.16	12.41
14	14	0.824	12.25	14.97
16	16	0.941	14.01	19.55
18	18	1.059	15.75	24.75
20	20	1.176	17.51	30.53
24	24	1.412	21.01	43.99
26	26	1.529	22.76	51.61
28	28	1.647	24.51	59.87
30	30	1. 765	26.26	68.74
32	32	1.882	28.01	78.18
34	34	2	29.76	88.27
36	36	2.118	31.51	98.98

NOMINAL PIPE SIZE	AVERAGE OUTSIDE DIAMETER	MIN. WALL THICKNESS	AVERAGE INSIDE DIAMETER	AVERAGE WEIGHT (LBS/FT)
DR32.5 (64 PSI)
1/2	0.84	0.062	0.71	0.07
3/4	1.05	0.062	0.92	0.08
1	1.315	0.062	1.18	0.11
2	2.375	0.073	2.22	0.23
3	3.5	0.108	3.27	0.51
4	4.5	0.138	4.21	0.83
5 3/8	5.375	0.165	5.03	1.19
5	5.563	0.171	5.2	1.27
6	6.625	0.204	6.19	1.81
7	7.125	0.219	6.66	2.09
8	8.625	0.265	8.06	3.06
10	10.75	0.331	10.05	4.77
12	12.75	0.392	11.92	6.69
14	14	0.431	13.09	8.08
16	16	0.492	14.96	10.54
18	18	0.554	16.83	13.36
20	20	0.615	18.7	16.47
24	24	0.738	22.44	23.72
26	26	0.8	24.3	27.86
28	28	0.862	26.17	32.33
30	30	0.923	28.04	37.09
32	32	0.985	29.91	42.22
34	34	1.046	31.78	47.63
36	36	1.108	33.65	53.42
