High-Quality Perforated Sheets at Fabco Plastics

Products

Plastic Sheet & Rod

Descriptions

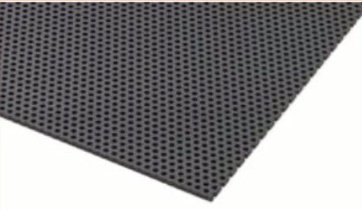

Perforated sheet is available in Natural Homopolymer Polypropylene and PVC. It is ideal for tumbling barrels, distributor plates, plating baskets, overflow weirs, odd size filters, scrubber packing, mesh screens, and support plates. The standard sheet size is 1/8″ x 4′ x 8′ with 1/8″ diameter holes on 3/16″ staggered centers. These sheets have 40% open area.

PART NO.	MATERIAL	THICKNESS (IN)
PERFORATED SHEET, 4' X 8'
S140211	PVC Gray	1/8
S240231	Polypro Nat.	1/8
