PVC & CPVC 580 Expansion Joints

Products

Pipes & Fittings

Descriptions

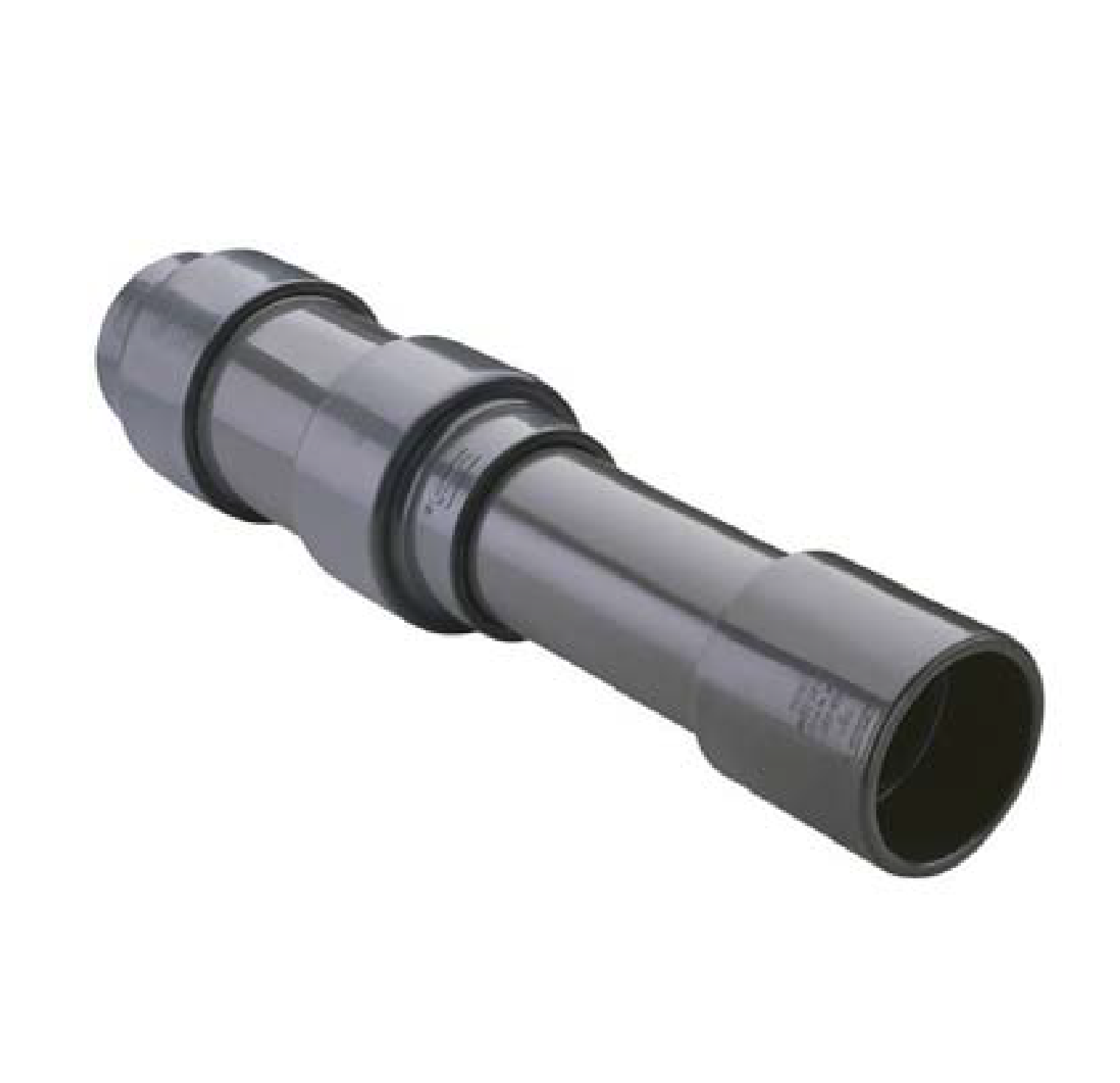

These expansion joints are fabricated from either PVC or CPVC and are available for Iron pipe sizes from 1/2″ to as high as 12″. They contain multi O-ring Viton® Seals with “Wiper” O-ring and requires no repair or replacement.

SIZE	PSI RA TING 00 73°F	PVC	CPVC
6" TRAVEL EXPANSION JOINTS
1/2	340	826-00SX6	526-00SX6
3/4	340	826-007X6	526-007X6
1	320	826-010X6	526-010X6
1-1/4	260	826-012X6	526-012X6
1-1/2	240	826-015X6	526-015X6
2	200	826-020X6	526-020X6
2-1/2	190	826-025X6	526-025X6
3	190	826-030X6	526-030X6
4	160	826-040X6	526-040X6
6	130	826-060X6	526-060X6
8	120	826-080X6	526-080X6
10	110	826-100X6	526-100X6
12	100	826-120X6	526-120X6
12" TRAVEL EXPANSION JOINTS
1/2	340	826-00SX12	526-00SX12
3/4	340	826-007X12	526-007X12
1	320	826-010X12	526-010X12
1-1/4	260	826-012X12	526-012X12
1-1/2	240	826-015X12	526-015X12
2	200	826-020X12	526-020X12
2-1/2	190	826-025X12	526-025X12
3	190	826-030X12	526-030X12
4	160	826-040X12	526-040X12
6	130	826-060X12	526-060X12
8	120	826-080X12	526-080X12
10	110	826-100X12	526-100X12
12	100	826-120X12	526-120X12
