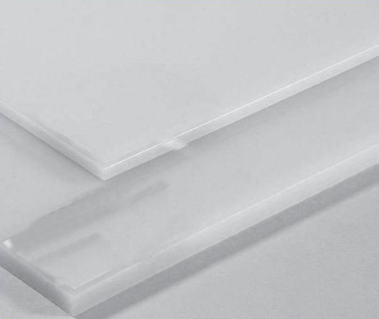

Simona PVDF Sheet exhibits excellent chemical and corrosion resistance to virtually all organic and inorganic media at high temperatures. The service temperature ranges from -22°F(-30°C) to +284°F( + 140°C). They are flame retardant and self-extinguishing. This sheet is easy to fabricate, weld, machine or thermoform. PVDF is ideal for applications including tanks, vessels, chemical industry, machined and fabricated parts, laboratory equipment, chemical processing, semiconductor and electroplating industry.
| PART # | THICKNESS (MM) | WT KG/SHEET | |
|---|---|---|---|
| PVDF NATURAL PRESSED SHEET 2000 MM x 1000 MM | |||
| S260632 | 12 | 94.14 | |
| S262032 | 15 | 117.73 | |
| S263232 | 20 | 156.97 | |
| S260832 | 25 | 196.21 | |
| S263332 | 30 | 235.45 | |
| S263432 | 35 | 274.69 | |
| S263532 | 40 | 313.94 | |
| S261232 | 50 | 392.42 | |
| S262132 | 60 | 470.90 | |
| S262332 | 70 | 549.39 | |
| S262632 | 80 | 627.87 | |
| PART | THICKNESS (MM) | WT KG/SHEET | |
|---|---|---|---|
| RED KYNAR PVDF SHEET, 4' X 8' | |||
| S260431 | 1/4" | 33.36 | |
| S260531 | 3/8" | 52.82 | |
| S260631 | 1/2" | 66.72 | |
| S260731 | 3/4" | 105.60 | |
| S260831 | 1" | 138.96 | |
| S260931 | 1 1/4" | 177.92 | |
| S261031 | 1 1/2" | 211.28 | |
| S261231 | 2" | 278.00 | |
| PART | THICKNESS (MM) | WT KG/SHEET | |
|---|---|---|---|
| PVDF NATURAL EXTRUDED SHEET 2000 MM x 1000 MM | |||
| S264332 | 2 | 15.65 | |
| S260232 | 3 | 23.59 | |
| S262232 | 4 | 31.31 | |
| S262532 | 5 | 39.24 | |
| S260432 | 6 | 47.18 | |
