Simona PVC GLAS Sheet | High Quality Plastic from Fabco Plastics

Products

Plastic Sheet & Rod

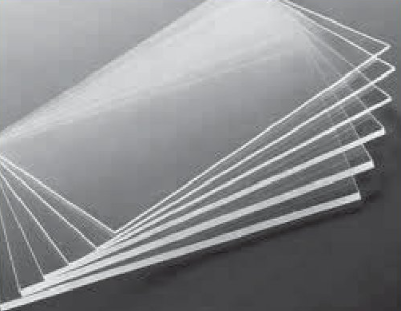

SIMONA® PVC GLAS sheets are extruded to exacting specification for normal impact applications requiring transparency. This ty pe of sheet has excellent corrosion resistance, very good dielectric properties, low moisture absorption, high rigidity, good abrasion resistance and excellent weathering properties. The material is also self-extinguishing.

• Normal Impact
• Excellent chemical and corrosion resistance
• Easy to fabricate, welded and machined
• Showcase quality surface
• Single- or double-side protective masking
• Stress relieved, square, flat sheet
• Accurate to dimensional tolerances
• Color consistent

• Chemical processing
• Semiconductor processing equipment
• Machined and fabricated parts
• Work Stations

• Meets UL 94V-0 Standards.
• Meets Federal Specification L-P 535e.
• Maximum application temperature + 140° F.
• offered with two sided protective foil.

PART	THICKNESS (MM)	WT PER SHEET (LBS)
GLASS - 2000MM X I000MM
5114222	1	5.95
5114322	2	12.13
5110222	3	18.08
5112222	4	24.25
5112522	5	30.20
5110422	6	36.16
5114622	8	48.28
5110522	10	60.41
5110622	12	72.53
5113122	15	90.61

PART	THICKNESS (MM)	WT PER SHEET (LBS)
GLAS - 3000 X 1500 MM
5114323	2	27.12
5110223	3	40.79
5112223	4	54.45
5112523	5	67.90
5110423	6	81.57

PART	THICKNESS (MM)	WT PER SHEET (LBS)
VERSADUR - 4' X B' SHEET
5110221	1/8	26.90
5110321	3/16	40.57
5110421	1/4	54.01
5110521	3/8	89.72
5110621	1/2	5110621
