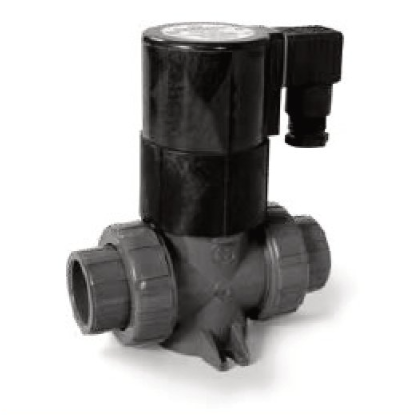

SV Series True Union Solenoid Valves

Products

Valves & Automation

• PVC and CPVC
• Corrosion-Resistant Polyester Coil
• No Pressure Differential Required for Operation
• Both 1/2″ Conduit or SJ-Type Cord Electrical Connection
• 110 VAC Standard

12 VAC, 24 VAC, 220 VAC, 12 voe, 24 voe

For optimum valve performance, inlet pressure must not exceed 120 PSI. Flow velocity must not exceed 5 ft. per second.

*PVC and CPVC socket ends available to ISO 727-1 and threaded ends to 8521.

SIZE	MATERIAL	END CONNECTION	SEALS	PRESSURE RATING
1/4" TO 1" PVC AND CPVC
1/4", 1/2", 3/4", l" (DN8-DN25)	PVC, or CPVC,	Socket and Flanged	FPM or EPDM	150 PSI @70°F (10 BAR@ 21 °C) Non-Shock
