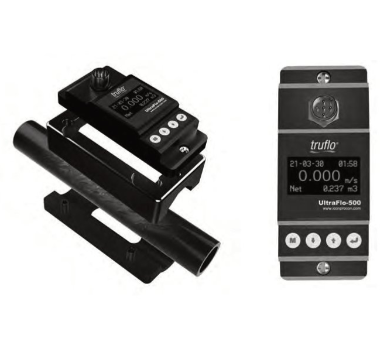

UFM-500 Clamp-On Ultrasonic Flow Meter

Products

Liquid Monitoring

The Truflo UFM-500 series Clamp-on Ultrasonic flow meters require no pipe cutting, eliminating flow restrictions, and are extremely easy to install with exceptionally long-life performance. These flow meters are highly repeatable, rugged sensors that offer exceptional value with virtually no maintenance.

• Simple to Install-No Cutting of Pipe
• Large Blue OLED Low Light Display
• High Accuracy I ± 2.0% of Full Scale
• Pipe Sizes ½ – 4″
• Flow Rate + Total I Resettable
• Flow Velocity Range I 0.3 – 15 ft/s I 0.1 – 5 m/s
• Works on PVC I PP I PVDF I PE I SS I Copper Pipe

• Chemical Processes
• Water Usage
• Scrubber I Gas Stacks
• Sodium Hypochlorite
• Visual Flow Indication
• Totalizer – Batching Applications
