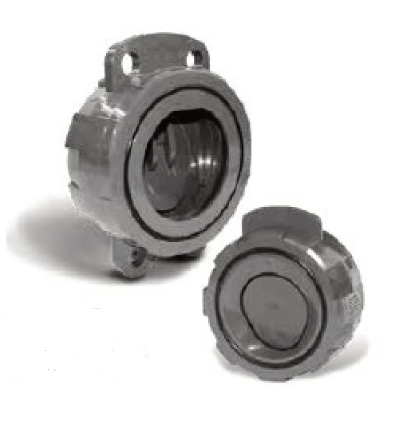

WCV Series Full Pattern Wafer Check Valves by Fabco Plastics

Products

Valves & Automation

• Robust Full Pattern Body
• PVC and CPVC
• No Special Spacers or Flanges Required
• High Cv Rating Equal to Metal Check Valves, Saves on Energy and Pump Wear
• FPM or EPDM Gasket and Face Seal
• One-Piece Disc and Shalt Design
• Designed for ANSilS0 and PNl0 Flanges
• Patent No. 8,887,757

316 Stainless Steel or Hastelloy® Disc Spring

Consult Factory on DN100 size

SIZE	MATERIAL	END CONNECTION	0-RING	SPRING	PRESSURE RATING (NON-SHOCK)
2" TO 8" PVC AND CVPC
2"-8" (DN50-DN200)	PVC or CPVC	Wafer	FPM or EPDM	316 ss, Hastelloy®	150 PSI @70°F (10 BAR @ 21 °C) Non-Shock
