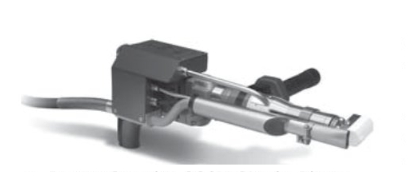

Wegener Exweld Alpha2 EC Extrusion Welder at Fabco Plastics

Products

Tools

• Suitable for welding PE, PP, PVDF and other thermoplastic materials
• Dual channel temperature controller for extrudate and preheat, cold start protection
• Unmatched relation between welding capacity, weight and price
• Electronically-controlled drive motor with variable welding speed
• Patented, trouble-free rod intake system
• Adjustable preheat extension, solid, durable construction, easy operation
• Exchangeable PTFE welding shoes can be easily machined to determine weld size and configuration
• Optional heavy-duty shipping/transport case with rollers
• Special model, ALP HA-P with corrosion-resistant components for PVC/CPVC

• Power Supply: 230V Single-Phase
• Power Consumption: 3960W max.
• Maximum Output: PE -(5. 7 lbs/hr), PP -2.2 Kg/hr ( 4.8Ibs/hr)
• Weight: 5.9 Kg (approx. 13 lbs)
• Rod Size: PP/PE 3, 4 or 5mm (1/8″, 5/32″or 3/16″)
