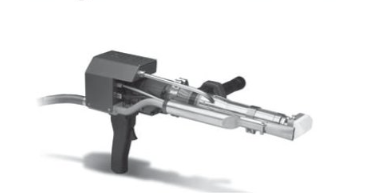

Wegener Exweld Beta2 EC Extrusion Welder for High-Quality Joinery

Products

Tools

• Suitable for welding PE, PP, PVDF and other thermoplastic materials. PVC optional.
• Temperature controller for extrudate with cold start protection and monitoring of set-point/actual temperatures
• Quick material changeover, lockable drive motor, and multi-position handle
• Sophisticated extrusion screw and aluminum melting chamber with cartridge/band heating system allows for smooth and optimum processing of extrudate
• Trouble-free rod intake system Distance from end of preheat nozzle and material is fully adjustable
• Streamline design with solid, durable construction Exchangeable PTFE welding shoes are easily machineable to determine weld size and configuration

• Power Supply: 230V Single-Phase
• Power Consumption: 5360W MAX
• Maximum Output: PE 4.31 Kg/hr (9.5 lbs/hr), PP 4.08 Kg/hr (9.0 lbs/hr)
• Weight: 8.9 Kg (approx 20 lbs) excl. cable/hose
• Rod Size: up to 5mm (3/16″)
