High-Quality PVC and CPVC Shapes for Versatile Applications

Products

Plastic Sheet & Rod

Descriptions

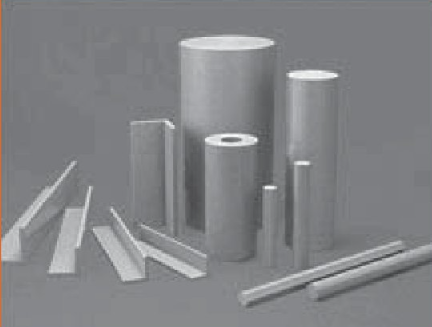

This product is provided porosity-free, stress-reduced with optimum physical properties and exacting tolerances, products that consistently machine with ease, part after part. Available products include angle, solid bar, hollow bar, square and hexagonal bar in Clear PVC, PVC, and CPVC. These materials offer excellent chemical and corrosion resistance, mechanical strength, and good thermal and electrical properties. They are noncontaminating for purity applications, and have excellent flammability characteristics. Other specialty materials such as static dissipative PVC, custom colors, additional sizes and special lengths are available upon request. Please contact customer service for more details .

0.0. (IN.)	1.0. (IN.)	PVC MATERIAL (WEIGHT LBS./FT.)	CPVC MATERIAL (WEIGHT LBS./FT.)
HOLLOW PVC AND CPVC
1.625	0.562	1.154	1.288
1.9	0.562	1.647	N/A
1.9	0.906	1.41	N/A
2	1.25	1.285	N/A
2.125	0.75	2.01	2.243
2.25	1.125	2.025	2.26
2.25	1.5	1.625	N/A
2.375	1	2.393	2.671
2.5	1	2.68	N/A
2.5	1.5	2.209	N/A
2.625	1.5	2.511	2.802
2.75	1	3.299	3.682
2.875	1.5	N/A	3.525
3	1	3.976	N/A
3	1.25	3.77	4.207
3	1.5	3.375	N/A
3	2	2.798	N/A
3.25	1.25	4.506	N/A
3.5	1.5	5.037	N/A
3.563	1.5	5.245	5.853
4	2.5	5.153	5.751
4	3	3.845	N/A
4.25	1.75	7.452	8.316
4.25	3	4.948	N/A
4.5	2	8.099	N/A
4.75	3	7.069	7.889
5	3	8.217	9.17
5.563	4	7.954	N/A
6	2.437	15.2	N/A
6	4	11.19	N/A
6.625	2.875	18.03	20.121
6.625	4	14.91	16.64
8.625	5.75	21.4	N/A

SIZE (IN.)	TOL. ACROSS FLATS (IN.)	GRAY PVC MATERIAL (WEIGHT LBS./FT.)	CPVC MATERIAL (WEIGHT LBS./FT.)
HEXAGONAL ROO
7/16	±.030	0.108	0.121
1/2	±.030	0.142	0.159
9/16	±.030	0.18	0.202
5/8	±.030	0.222	0.249
3/4	±.030	0.32	0.359
13/16	±.030	0.375	0.421
7/8	±.030	0.435	0.489
1	±.030	0.569	0.639
1 1/8	±.030	0.721	0.81
1 1/4	±.0625 - 0	0.89	0.999
1 3/8	±.0625 - 0	1.08	1.213
1 1/2	±.0625 - 0	1.283	1.441
1 3/4	±.0625 - 0	1.746	N/A
2	±.0125 - 0	2.28	2.56

SIZE (IN.)	TOL. ACROSS FLATS (IN.)	GRAY PVC MATERIAL (WEIGHT LBS./FT.)	CPVC MATERIAL (WEIGHT LBS./FT.)
SOUARE ROD
1/2	±.030	0.157	N/A
5/8	±.030	0.238	N/A
3/4	±.030	0.36	N/A
1	±.030	0.629	N/A
1 1/4	±.0625	1.033	N/A
1 1/2	±.0625	1.464	N/A
2	0.055	2.452	N/A

SIZE (IN.)	GRAY PVC MATERIAL (WEIGHT LBS./FT.)	WHITE PVC MATERIAL (WEIGHT LBS./FT.)	CPVC MATERIAL (WEIGHT LBS./FT.)	CLEAR MATERIAL (WEIGHT LBS./FT.)
PVC ANO CPVC ANGLE
1" X 1" X 1/8"	0.141	0.141	0.18	0.141
1-1/4" X 1-1/4" X 3/16"	0.262	0.262	0.325	0.262
1-1/2" X 1-1/2" X 3/16"	0.316	0.316	0.395	0.316
1-1/2" X 1-1/2" X 1/4"	0.415	N/A	N/A	0.415
2" X 2" X 1/4"	0.563	0.563	0.645	0.563
